Those of you that are looking to add electrical devices and want to MAKE YOUR OWN "Y" taps or what is known here as the "Dennis B" connector, the source for the connector blocks can be found here ........

http://electricalconnection.com/index.php?route=product/category&path=20_59

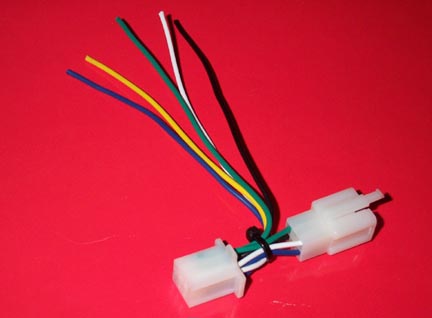

Honda (Hitachi) electrical connectors Honda_10


Last edited by trouble1100 on Fri Sep 04, 2015 12:17 pm; edited 1 time in total
Back to top Go down
vmaximus
Maxi-Scooter Rider
Maxi-Scooter Rider



Number of posts : 133
Age : 71
Location : Kirkby in ashfield Nottinghamshire England
Points : 4867
Registration date : 2011-04-15

Honda (Hitachi) electrical connectors Empty
PostSubject: Honda electrical connectors   Honda (Hitachi) electrical connectors I_icon_minitimeThu Sep 03, 2015 2:02 pm

For the UK riders. Towzatronics  of Stapleford, Nottingham,Address: Unit 1, Barton Road, Long Eaton, Nottingham NG10 2FN Phone:07724 410622  supply all the connectors that you want, also via Ebay.I have dealt with them before and found them very helpful.
Back to top Go down
MikeO
Site Admin
MikeO


Number of posts : 3779
Age : 74
Location : Seaham, Co Durham, UK
Points : 9378
Registration date : 2009-06-29

Honda (Hitachi) electrical connectors Empty
PostSubject: Re: Honda (Hitachi) electrical connectors   Honda (Hitachi) electrical connectors I_icon_minitimeThu Sep 03, 2015 3:01 pm

Thanks, chaps.

Perhaps someone will invest in the kit and make them to sell. Wink
Back to top Go down
vmaximus
Maxi-Scooter Rider
Maxi-Scooter Rider



Number of posts : 133
Age : 71
Location : Kirkby in ashfield Nottinghamshire England
Points : 4867
Registration date : 2011-04-15

Honda (Hitachi) electrical connectors Empty
PostSubject: honda electrical connectors   Honda (Hitachi) electrical connectors I_icon_minitimeThu Sep 03, 2015 3:59 pm

No kit required, I just used a cable terminal crimper/wire stripper,  snipe nosed pliers, male /female connectors and terminals, enough wire to complete the job and patience. I made mine to connect trailer wiring to the rear harness, I have not had any problems with it so far and it has been fitted for about 3 years. Simples.
Back to top Go down
Cosmic_Jumper
Site Admin
Cosmic_Jumper


Number of posts : 4416
Age : 80
Location : damn near Philadelphia, PA
Points : 10478
Registration date : 2009-06-12

Honda (Hitachi) electrical connectors Empty
PostSubject: Re: Honda (Hitachi) electrical connectors   Honda (Hitachi) electrical connectors I_icon_minitimeThu Sep 03, 2015 4:54 pm

Thanks for the link, Ron. But actually the Hitachi Connector used on SWs is a 6-pin connector; running lights, left turn, right turn, brake light, and ground (neutral) --leaving one terminal empty.

Here is a link for the 6-pin connector:
http://electricalconnection.com/index.php?route=product/product&filter_name=Hatachi+6+pin+connector&product_id=143

Tim
Back to top Go down
MikeO
Site Admin
MikeO


Number of posts : 3779
Age : 74
Location : Seaham, Co Durham, UK
Points : 9378
Registration date : 2009-06-29

Honda (Hitachi) electrical connectors Empty
PostSubject: Re: Honda (Hitachi) electrical connectors   Honda (Hitachi) electrical connectors I_icon_minitimeThu Sep 03, 2015 5:15 pm

Ah! I thought there was a 'tool' involved.
I have the ones you've mentioned. Smile
Back to top Go down
trouble1100
Touring Scooter Rider
Touring Scooter Rider
trouble1100


Number of posts : 341
Location : Surprise, AZ.
Points : 5519
Registration date : 2010-04-30

Honda (Hitachi) electrical connectors Empty
PostSubject: Re: Honda (Hitachi) electrical connectors   Honda (Hitachi) electrical connectors I_icon_minitimeThu Sep 03, 2015 8:03 pm

Cosmic_Jumper wrote:
Thanks for the link, Ron. But actually the Hitachi Connector used on SWs is a 6-pin connector; running lights, left turn, right turn, brake light, and ground (neutral) --leaving one terminal empty

My bad, I booted the picture from Dennis B's post and thought it was a 4-pin. Thanks Tim!
Back to top Go down
BrianInVA
Super Scooter Rider
Super Scooter Rider
BrianInVA


Number of posts : 287
Location : VA
Points : 1018
Registration date : 2022-04-17

Honda (Hitachi) electrical connectors Empty
PostSubject: Re: Honda (Hitachi) electrical connectors   Honda (Hitachi) electrical connectors I_icon_minitimeMon May 02, 2022 12:11 am

I fully realize this is a VERY old thread. However, the ElectricalConnection link about still sells the 6 pin Hitachi connector noted above, if you search their site for “Hitachi 6 pin connector.”

What exactly is involved in completing this wiring assembly to hook up trailer lights for the Silverwing?
Back to top Go down
Cosmic_Jumper
Site Admin
Cosmic_Jumper


Number of posts : 4416
Age : 80
Location : damn near Philadelphia, PA
Points : 10478
Registration date : 2009-06-12

Honda (Hitachi) electrical connectors Empty
PostSubject: Re: Honda (Hitachi) electrical connectors   Honda (Hitachi) electrical connectors I_icon_minitimeMon May 02, 2022 9:44 am

BrianInVA wrote:
(Snip)
What exactly is involved in completing this wiring assembly to hook up trailer lights for the Silverwing?

Source 20ga wire (good luck)—preferably of the same color codes (good luck with that too
Cut the wires to the proper length to fit between the connectors (say ~6”)
Cut additional wires to whatever length you’ll need for the trailer
Mate those trailer wires to the proper color wires you’ve selected for brake, turn, and running lights.
Crimp the mated wire ends into the connector terminals
Crimp the non-mated wire end to another of the connector terminals
Insure that the wires are securely attached to the terminals
Insert the assembled wires into the appropriate holes of the Hitachi connectors
Unplug the original connecter and insert your new connector between the original connector halves.

Or…  Just use Posi-Tap connectors on the original wiring.

Honda (Hitachi) electrical connectors E5582910

Not quite as neat as a plug ‘n play connector, but less trouble and much expensive than 20ga wiring.
