 Silver Wing Hitch and Trailer

View previous topic View next topic Go down
AuthorMessage
hotwings
Silver Wing Expert
Silver Wing Expert
avatar

Number of posts : 880
Age : 47
Location : Ontario
Points : 3015
Registration date : 2012-04-29

PostSubject: Silver Wing Hitch and Trailer   Wed 20 Aug 2014, 12:47

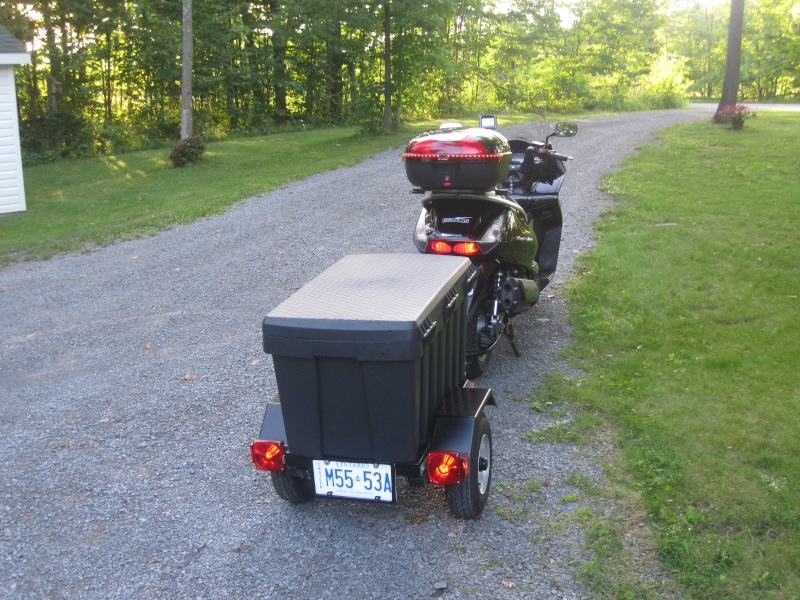

I finally got around to building myself a hitch and trailer! It was a fun project. I think the hardest part was getting the correct bends on the 1" pipe for the hitch. The pipe was heavy wall (1/8")
and took a lot of elbow grease to shape. I used a hand bender to mold it and yes there was nashing of teeth! The plate steel is 1/4" for the ball mount and side mounts.


I wanted the trailer to sit low so i made the hitch to sit below the shock center by around 3". I replaced the original shock bolts with 1/4" longer bolts to allow for the extra thickness of the hitch mount. I also replaced the front bolt with a hardened bolt because of the sheer pressure that may come on it!



I originally painted the hitch black but the area around the ball was easily scratched so i found this self adhesive rubber mat at walmart to solve that problem.



The trailer was originally a Harbor Freight 4'x4' trailer. I cut and welded the pieces to the appropriate size i needed. The box came from Lowes. The trailer came in red but i painted it semi gloss black to better match the bike. The trailer came with all the lights and wiring, nothing extra was required except the Lowes cargo box. I like that the box came with a locking lid plus the ability to use an extra lock if required.



I swapped all the trailer bulbs for led bulbs so the electrical system wouldnt be stressed.



The bike required a 5 to 4 adapter for the trailer hook up. The adapter cost around $5 and was easy to install. I soldered the wires to the appropriate colored wires for safety's sake. Theres even a small area to pass the wire through without cutting/drilling the bike!



COSTS:
Trailer= $190
Cargo box= $75
Hitch material= $25
LED bulbs= $15
Misc.= $20

 Total= $325

TRAILER SPECS:
Total width= 31" (swing mirrors are 34")
Total length= 62"
Total weight empty= 128.6 lbs
Total tongue weight= 11.8 lbs



I road tested the trailer with my wife onboard for around 400klm's and i would say it pulls without effort! The only time i could feel it behind me was when making sharp turns i.e. traffic lights, parking lots etc. We took it on a road test fully loaded with two suitcases packed with 4 days clothing and footwear, plus a roadside emergency kit, plus two extra open face helmets in case the weather turned nice (cold and raining)......It didnt so we only overnighted and returned home the next day. We gave the trailer two thumbs up! excellent for touring around.


Last edited by hotwings on Thu 21 Aug 2014, 09:11; edited 1 time in total
Back to top Go down
tinman
Silver Wing Guru
Silver Wing Guru


Number of posts : 1293
Age : 69
Location : Matheson, Ontario, Canada
Points : 3564
Registration date : 2011-11-29

PostSubject: Re: Silver Wing Hitch and Trailer   Wed 20 Aug 2014, 13:55

Very nice and now you can go grocery shopping and leave the cager at home.Job well done  cheers
Back to top Go down
"Hi Yo"
Silver Wing Guru
Silver Wing Guru
avatar

Number of posts : 3022
Age : 68
Location : Garland, Texas, U.S.A.
Points : 6083
Registration date : 2010-02-17

PostSubject: Re: Silver Wing Hitch and Trailer   Wed 20 Aug 2014, 16:14

Niiiiiiiiiiiiice!!!  cheers
Back to top Go down
mick
Scooter Rider
Scooter Rider
avatar

Number of posts : 80
Age : 49
Location : johnstone renfrewshire scotland
Points : 2297
Registration date : 2011-11-11

PostSubject: Re: Silver Wing Hitch and Trailer   Wed 20 Aug 2014, 16:14

nice work Smile

done a similar one when had my vespa gts 300 but must admit yours looks better

because it on the SW  Cool
Back to top Go down
DickO
Silver Wing Expert
Silver Wing Expert
avatar

Number of posts : 868
Age : 72
Location : Harveyville, Kansas
Points : 4221
Registration date : 2008-12-23

PostSubject: Re: Silver Wing Hitch and Trailer   Wed 20 Aug 2014, 18:09

"hotwings",
Very fine job. Wish I had learned to weld in my younger years.
Back to top Go down
model28a
Silver Wing Guru
Silver Wing Guru
avatar

Number of posts : 2104
Age : 64
Location : St.Pete.FL.
Points : 5031
Registration date : 2010-02-03

PostSubject: Re: Silver Wing Hitch and Trailer   Wed 20 Aug 2014, 19:08

DickO with the new MIG welders it's not hard to teach yourself at home. Also with places like Harbor Freight you can pick up a cheap MIG welder that will do most anything you would want do at home.
Back to top Go down
DickO
Silver Wing Expert
Silver Wing Expert
avatar

Number of posts : 868
Age : 72
Location : Harveyville, Kansas
Points : 4221
Registration date : 2008-12-23

PostSubject: Re: Silver Wing Hitch and Trailer   Wed 20 Aug 2014, 19:25

Thanks for the info, "28a"; my wife is gonna love you for tellin' me about that !!!  Laughing Laughing  Seriously, I think I will check on it. Thanks again.
Back to top Go down
hotwings
Silver Wing Expert
Silver Wing Expert
avatar

Number of posts : 880
Age : 47
Location : Ontario
Points : 3015
Registration date : 2012-04-29

PostSubject: Re: Silver Wing Hitch and Trailer   Wed 20 Aug 2014, 21:49

DickO wrote:
"hotwings",
Very fine job.  Wish I had learned to weld in my younger years.
Thanks DickO but im no welder by any means. I am a carpenter by trade. I can get by doing my own welding. I did the welds on the trailer and hitch with an old school stick welder.
Back to top Go down
model28a
Silver Wing Guru
Silver Wing Guru
avatar

Number of posts : 2104
Age : 64
Location : St.Pete.FL.
Points : 5031
Registration date : 2010-02-03

PostSubject: Re: Silver Wing Hitch and Trailer   Wed 20 Aug 2014, 22:28

Now days with a MIG welder you pretty much just point the gun at the metal and pull the handle. If it burns through turn, the heat down, if it doesn't melt down into the metal, turn the heat up,if it doesn't leave a nice rounded bead above the metal turn the feed up or down depending on the look of the bead. If you play around with some scrap metal you'll get the hang of it. The biggest problem is dirt, make you get the metal free of paint, rust and dirt and you'll be surprised how fast you learn.
If hotwings can weld that good with a stick welder think how well you can get with a mig welder. With a stick welder you need to know the right rod, the right heat, the right angel and how far away from the metal to hold the rod. And that's just to start with.

hotwings my compliments to your welding skills. If you have never welded with a MIG welder try it if you ever get a chance.
Back to top Go down
hotwings
Silver Wing Expert
Silver Wing Expert
avatar

Number of posts : 880
Age : 47
Location : Ontario
Points : 3015
Registration date : 2012-04-29

PostSubject: Re: Silver Wing Hitch and Trailer   Thu 21 Aug 2014, 06:38

model28a wrote:
If hotwings can weld that good with a stick welder think how well you can get with a mig welder. With a stick welder you need to know the right rod, the right heat, the right angel and how far away from the metal to hold the rod. And that's just to start with.

hotwings my compliments to your welding skills. If you have never welded with a MIG welder try it if you ever get a chance.
It would be nice but i really dont do enough welding to justify buying a mig welder. Another pain with stick welding is running out of stick before finishing a weld whereas the mig can weld "forever". As part of the carpentry curriculum we had to take a basic welding course. It was nice to get to know the basics.
Back to top Go down
Mrpw666
Scooter Rider
Scooter Rider


Number of posts : 28
Age : 59
Location : Anglesey UK
Points : 1868
Registration date : 2012-11-22

PostSubject: Height of Ball   Thu 21 Aug 2014, 09:42

Hi Hotwings

Extremely tidy job! A question though, when I had a caravan with a certain anti snake hitch fitted, I had to fit an extended height ball with a longer stem (25mm) to my car coz the book said that if the caravan tilted excesively from side to side the hitch could contact the stem and pop the hitch off! Just wondering coz as the swing tilts whilst riding coupled with trailer say tilting opposite could this happen or our we talking extreme angles? From your excellent pictures the ball looks quite short. Might be fussing too much but just a thought.

Best Regards

Mark
Back to top Go down
hotwings
Silver Wing Expert
Silver Wing Expert
avatar

Number of posts : 880
Age : 47
Location : Ontario
Points : 3015
Registration date : 2012-04-29

PostSubject: Re: Silver Wing Hitch and Trailer   Thu 21 Aug 2014, 14:40

Mrpw666 wrote:
Hi Hotwings

Extremely tidy job! A question though, when I had a caravan with a certain anti snake hitch fitted, I had to fit an extended height ball with a longer stem (25mm) to my car coz the book said that if the caravan tilted excesively from side to side the hitch could contact the stem and pop the hitch off! Just wondering coz as the swing tilts whilst riding coupled with trailer say tilting opposite could this happen or our we talking extreme angles? From your excellent pictures the ball looks quite short. Might be fussing too much but just a thought.

Best Regards

Mark
I dont think this is an issue for me. After mounting the trailer for the first time onto the hitch i had a buddy tip the bike to extremes and the ball rolled in the coupler without anything hitting or binding.
Back to top Go down
Silver Dave K
Maxi-Scooter Rider
Maxi-Scooter Rider


Number of posts : 110
Age : 70
Location : Sedro Woolley ,WA
Points : 1376
Registration date : 2014-06-12

PostSubject: Re: Silver Wing Hitch and Trailer   Fri 22 Aug 2014, 10:18

Looks good Hotwings! I've towed lots of different trailers with Gold Wings. Everything from Bushtec Turbo's to KwiKamps. I'm thinking you might want to consider a swivel hitch on the trailer for better handling Dave  swing .
Back to top Go down
vmaximus
Scooter Rider
Scooter Rider


Number of posts : 99
Age : 64
Location : Nottinghamshire England
Points : 2538
Registration date : 2011-04-15

PostSubject: Re: Silver Wing Hitch and Trailer   Sun 28 Sep 2014, 15:21

MRpw666 I made my own towbar and tow the trailer with the wife as pillion most weekends during the summer months (weather permitting) the 80 odd miles to Skegness and never had a problem. if you have a good ball and hitch I think that it is most unlikely that they would come apart with lean angle. While camping at Skeggy one night I left the trailer coupled to the S/wing parked on the side stand which duly sunk into the soft ground and slowly fell over taking the trailer over with it, no damage was done but its one hell of a shock with me and the wife trying to right a heavy scooter and trailer at 05.30 in the morning. After this incident I did not have any doubts about either my welding or the hitch separating, if it can land on its side still coupled to the scoot its highly unlikely that it would separate during normal use.  One thing that it learned me was to never park on soft grass on the s/stand without it being supported by some form of pad.
Back to top Go down
Dale N.
Silver Wing Expert
Silver Wing Expert
avatar

Number of posts : 697
Age : 71
Location : Princeton, MN
Points : 2133
Registration date : 2014-02-13

PostSubject: Re: Silver Wing Hitch and Trailer   Sun 28 Sep 2014, 18:13

Hotwings, That is such a NICE looking hitch!
Back to top Go down
Greysilver
Silver Wing Rider
Silver Wing Rider
avatar

Number of posts : 448
Age : 71
Location : Arizona
Points : 1812
Registration date : 2014-04-08

PostSubject: Re: Silver Wing Hitch and Trailer   Sun 28 Sep 2014, 21:23

Very nice !
Back to top Go down
ronnie reeves
Scooter Rider
Scooter Rider


Number of posts : 1
Location : Manchester Tn.
Points : 794
Registration date : 2015-09-18

PostSubject: Re: Silver Wing Hitch and Trailer   Mon 30 May 2016, 17:51

Can someone send me a address to order a hitch for a Silverwing to rjreeves@charter.net 931-247-4502
Back to top Go down
DaveR
Silver Wing Rider
Silver Wing Rider


Number of posts : 440
Age : 81
Location : Scottsbluff, Nebraska U.S.A
Points : 3648
Registration date : 2009-02-19

PostSubject: Re: Silver Wing Hitch and Trailer   Mon 30 May 2016, 18:52

That is a cool set up. I would like to have one but am getting to old to use it. It looks like it would be worth the dollars for the younger people. Job well done!
Back to top Go down
oldwingguy
Silver Wing Expert
Silver Wing Expert


Number of posts : 634
Location : Hocking Hills U.S.A.
Points : 1348
Registration date : 2016-01-29

PostSubject: Re: Silver Wing Hitch and Trailer   Tue 31 May 2016, 07:51

Nice job hotwings nice job cheers
Back to top Go down
sctr199
Maxi-Scooter Rider
Maxi-Scooter Rider
avatar

Number of posts : 142
Age : 67
Location : El Cajon, CA
Points : 1730
Registration date : 2013-07-29

PostSubject: Re: Silver Wing Hitch and Trailer   Tue 31 May 2016, 14:42

ronnie reeves wrote:
Can someone send me a address to order a hitch for a Silverwing to rjreeves@charter.net  931-247-4502

http://www.customcruiserchrome.com/product/167
Back to top Go down
Gustafa
Maxi-Scooter Rider
Maxi-Scooter Rider
avatar

Number of posts : 192
Location : Cordova, TN
Points : 1010
Registration date : 2015-10-10

PostSubject: Re: Silver Wing Hitch and Trailer   Wed 01 Jun 2016, 14:24

This is the hitch I have on my Silverwing

http://motorcycle-hitch.com/Honda_167.html
Back to top Go down
Kenjj50
Super Scooter Rider
Super Scooter Rider


Number of posts : 218
Age : 67
Location : Naperville, Illinois
Points : 1020
Registration date : 2015-09-28

PostSubject: Re: Silver Wing Hitch and Trailer   Wed 01 Jun 2016, 20:56

Brilliant! Terrific photos, too. Looks like you're ready to travel anywhere!
Back to top Go down
Retired
Scooter Rider
Scooter Rider
avatar

Number of posts : 29
Age : 62
Location : Charlotte Michigan
Points : 522
Registration date : 2016-08-06

PostSubject: Trailer hitch   Fri 28 Oct 2016, 10:43

By any chance would you still have the plans for the plate on the right side
Thanks Steve
Back to top Go down
Kenjj50
Super Scooter Rider
Super Scooter Rider


Number of posts : 218
Age : 67
Location : Naperville, Illinois
Points : 1020
Registration date : 2015-09-28

PostSubject: Re: Silver Wing Hitch and Trailer   Fri 28 Oct 2016, 16:57

hotwings...Very nice job of fabricating both the trailer hitch and trailer. I hope you have miles and miles of travel enjoyment in your future. Many thanks for the great photos.
Back to top Go down
Flyingpanman
Maxi-Scooter Rider
Maxi-Scooter Rider
avatar

Number of posts : 191
Age : 67
Location : Morecambe, Lancs., UK.
Points : 750
Registration date : 2016-06-03

PostSubject: Re: Silver Wing Hitch and Trailer   Fri 28 Oct 2016, 17:26

Not that I'm an expert, but I wouldn't want to use a trailer hitch that was connected to the trailing arm with all it's harsh movement from the road surface being put through the tow bar tongue and trailer chassis.

A hitch fixed to the suspended chassis would eliminate all the bouncing and jiggling. The tow bar, hitch joint and trailer would get a much smoother, and less stressed ride.

Most (if not all) road going vehicles have hitches fixed to the chassis/body - not the rear axle. (Agricultural vehicles excepted).
Back to top Go down
john grinsel
Silver Wing Guru
Silver Wing Guru
avatar

Number of posts : 2253
Points : 5688
Registration date : 2009-08-18

PostSubject: Re: Silver Wing Hitch and Trailer   Fri 28 Oct 2016, 18:47

Agree, on hitch mounted to swing arm. I have about 75,000 miles of experience pulling trailer with motorcycle, some good, some bad, think SilverWing drive train not designed for extra load, braking? You might be able to get away with a Unigo single wheel trailer, provided proper hitch could be sourced.
Back to top Go down
oldwingguy
Silver Wing Expert
Silver Wing Expert


Number of posts : 634
Location : Hocking Hills U.S.A.
Points : 1348
Registration date : 2016-01-29

PostSubject: Re: Silver Wing Hitch and Trailer   Fri 28 Oct 2016, 19:14

Good job cheers
Back to top Go down

Silver Wing Hitch and Trailer
View previous topic View next topic Back to top
Page 1 of 1
 Similar topics
-
» Silver Wing Hitch and Trailer
» Silver Wing trailer hitch
» Harborfreight trailer
» Info: Trailer towing with a Silver Wing trike
» Replacement oil filter for Honda Silver Wing.

Permissions in this forum:You cannot reply to topics in this forum
Honda Silver Wing Scooter Forum :: Honda Silver Wing :: Accessories & Modifications-
Jump to:
